EEI-Socomec Hydraulic Breakers (Parma, Italy)

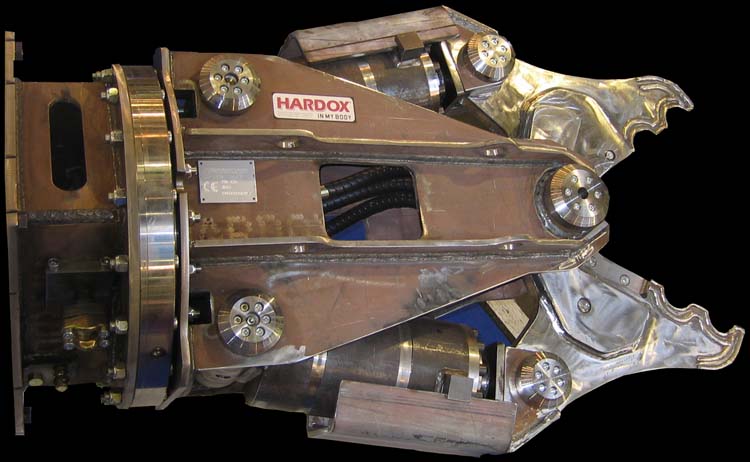

Socomec PDO Rotating Demolition Pulverizers & Crushers
Engineered for carriers from 1.7 to 13 metric tons, the PDO series provides continuous 360-degree hydraulic rotation driven via a single electric solenoid valve over two primary hydraulic hoses. Fabricated entirely with Hardox 400 wear-resistant steel for demolition and secondary concrete recycling.
- • PDO 200: Weight 440 lbs (200 kg); Excavator class 1.7 to 3.0 tons; Jaw opening 14 inches; Jaw depth 14 inches; Cutter length 3.25 inches; Overall length 45 inches; Rebar cut capacity 1 inch; Cylinder force 20 metric tons; Tip force 15 metric tons; Cutter force 40 metric tons; Flow 8 gpm; Working pressure 2,600 psi (Max 2,900 psi); Rotation pressure 2,900 psi at 8 gpm.
- • PDO 300: Weight 660 lbs (300 kg); Excavator class 3.0 to 6.0 tons; Jaw opening 14 inches; Jaw depth 14 inches; Cutter length 3.25 inches; Overall length 49 inches; Rebar cut capacity 1.25 inches; Cylinder force 30 metric tons; Tip force 22 metric tons; Cutter force 70 metric tons; Flow 14 gpm; Working pressure 3,300 psi (Max 3,600 psi); Rotation pressure 3,600 psi at 14 gpm.
- • PDO 650: Weight 1,430 lbs (650 kg); Excavator class 6.0 to 13.0 tons; Jaw opening 20 inches; Jaw depth 16 inches; Cutter length 6.25 inches; Overall length 60 inches; Rebar cut capacity 1.5 inches; Cylinder force 50 metric tons; Tip force 35 metric tons; Cutter force 100 metric tons; Flow 16 gpm; Working pressure 3,600 psi (Max 4,000 psi); Rotation pressure 2,000 psi at 15 gpm.

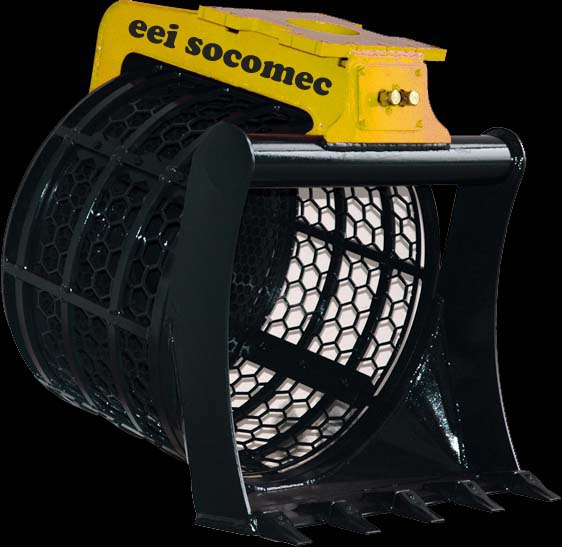

Socomec SBV Rotary Screening Buckets
Designed for material classification, site remediation, and sorting on excavators from 3.5 to 35.3 metric tons. Equipped with heavy-duty internal screening drums running between 18 and 24 RPM at operating pressures of 1,450 to 1,740 psi.
- • SBV 300: Carrier 3.5 to 5.5 tons; Weight 620 lbs; Capacity 0.2 m3 SAE; Rotation 18 - 24 RPM; Oil flow 7.9 - 13.2 gpm; Pressure 1,450 - 1,740 psi; Ports 1/2 inch GAS; Dimensions A: 17.5 in, B: 28.3 in, C: 39.0 in, D: 26.8 in, L: 27.2 in.
- • SBV 400: Carrier 5.5 to 8.8 tons; Weight 900 lbs; Capacity 0.3 m3 SAE; Rotation 18 - 24 RPM; Oil flow 7.9 - 13.2 gpm; Pressure 1,450 - 1,740 psi; Ports 1/2 inch GAS; Dimensions A: 20.3 in, B: 37.2 in, C: 46.3 in, D: 31.1 in, L: 31.5 in.
- • SBV 800: Carrier 8.8 to 13.2 tons; Weight 1,800 lbs; Capacity 0.4 m3 SAE; Rotation 18 - 24 RPM; Oil flow 13.2 - 18.5 gpm; Pressure 1,450 - 1,740 psi (100 - 120 bar); Ports 3/4 inch GAS; Dimensions A: 27.2 in, B: 37.0 in, C: 52.8 in, D: 35.4 in, L: 35.4 in.
- • SBV 1350: Carrier 14.3 to 18.7 tons; Weight 2,975 lbs; Capacity 0.7 m3 SAE; Rotation 18 - 24 RPM; Oil flow 21.1 - 26.4 gpm; Pressure 1,450 - 1,740 psi; Ports 3/4 inch GAS; Dimensions A: 30.3 in, B: 51.2 in, C: 66.1 in, D: 46.1 in, L: 47.2 in.
- • SBV 1650: Carrier 17.6 to 24.3 tons; Weight 3,640 lbs; Capacity 0.85 m3 SAE; Rotation 18 - 24 RPM; Oil flow 21.1 - 26.4 gpm; Pressure 1,450 - 1,740 psi; Ports 3/4 inch GAS; Dimensions A: 31.9 in, B: 57.1 in, C: 69.3 in, D: 52.8 in, L: 55.1 in.
- • SBV 1950: Carrier 24.3 to 35.3 tons; Weight 4,300 lbs; Capacity 1.0 m3 SAE; Rotation 18 - 24 RPM; Oil flow 21.1 - 26.4 gpm; Pressure 1,450 - 1,740 psi; Ports 3/4 inch GAS; Dimensions A: 31.9 in, B: 65.0 in, C: 70.9 in, D: 61.4 in, L: 63.0 in.
Socomec BRP Vibratory Plate Compactors
Specialized boom-mounted hydraulic vibratory plates engineered for soil trench compaction, slope stabilization, and post/sheet pile driving across utility and civil jobsites.
- • Compatible with compact, mid-size, and heavy excavators utilizing existing hammer hydraulic piping circuits.
- • Integrated high-frequency eccentric vibration modules maximize soil compaction depth while isolating the carrier boom via high-deflection rubber elastomer buffers.
- • Reconditioned unit inventory records list Tramac/BRP units including BRP 130 and BRP 140 models fitted to Brokk 250 robotic carrier mounting plates.
