Gallmac 360° Hydrostatic 4WD/4WS Multi-Task Tool Carriers
Specialized Trenching and Dirt Digging Machine

Gallmac WMW-115TRS

An exclusive dirt digging variant of the Gallmac WMW-115 featuring an articulated arm, trenching chain frame, motorized synchronized wheel, and superoffset capability for urban utility work.

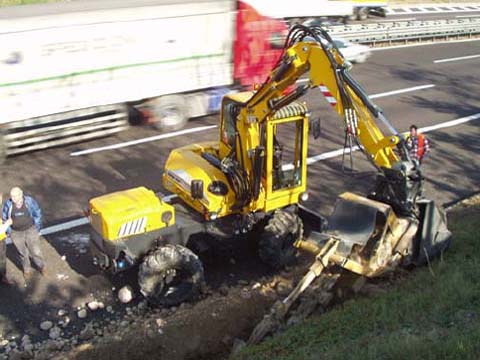

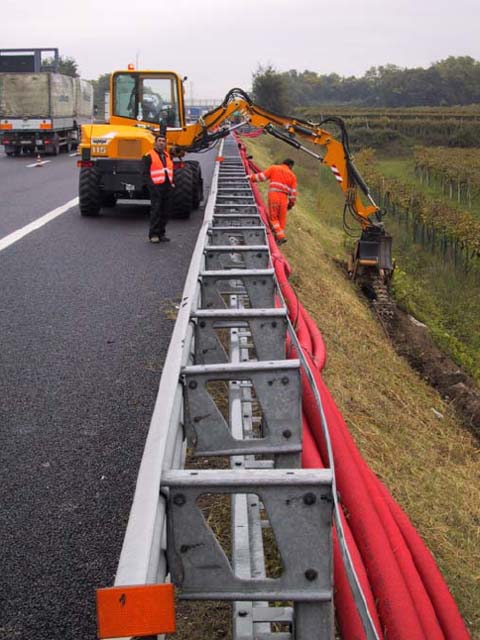

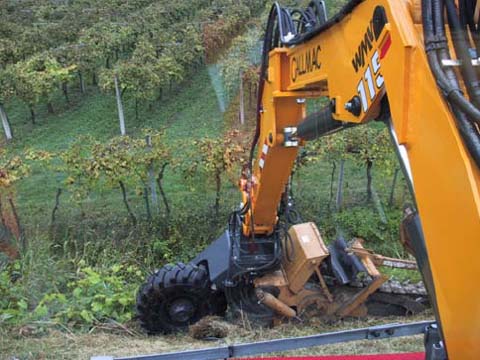

▶ JOBSITE DEMONSTRATION VIDEO (Gallmac WMW-115TRS)

Gallmac WMW-115TRS Engineering Specification Table

Subsystem Engineering Parameter US Standard (Imperial) Metric (SI Units)
Trencher Digging Width 7 3/4 - 13 3/4 inches 20 - 35 cm
Trencher Digging Depth 23 1/2 - 47 1/4 inches 60 - 120 cm
Trencher Frame Configuration Articulated arm with digging chain and motorized wheel Articulated arm with digging chain and motorized wheel
Trencher Wheel Synchronism Synchronized with tractor wheels for continuous digging Synchronized with tractor wheels for continuous digging
Trencher Offset Capability Superoffset capability for difficult urban job sites Superoffset capability for difficult urban job sites
Base Platform Engine Model Perkins 1004-40T 244 cu. in. Turbocharged Fastram Perkins 1004-40T 4000 cc Turbocharged Fastram
Base Platform Base Platform Power 80.5 kW (108 HP) at 2400 RPM 80.5 kW (108 HP) at 2400 RPM
Base Platform Transmission Hydrostatic closed circuit, variable pump and motor Hydrostatic closed circuit, variable pump and motor
Base Platform Travel Speed 0 to 16 mph 0 to 26 km/h
Base Platform Main Pump Delivery 169 qts./min at 280 bar 156 lt/min at 280 bar
Base Platform Steering Modes Rear-wheel, 4-wheel opposite, Crab steering Rear-wheel, 4-wheel opposite, Crab steering
Base Platform Axles Clark Hurth both steering and driving Clark Hurth both steering and driving
